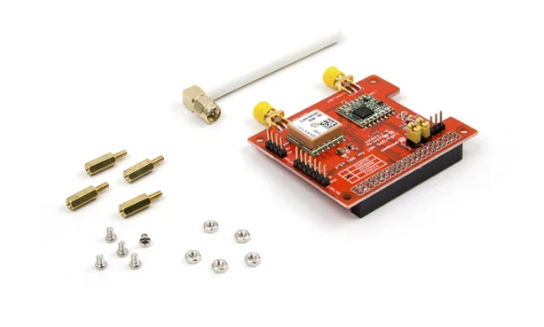

LoRaWan communication board for Raspberry Pi
The Dragino Lora/GPS HAT is an expansion module for LoRaWan and GPS uses with the Raspberry Pi. This product is intended for those interested in developing LoRaWAN solutions.The Lora/GPS HAT is based on the SX1276/SX1278 transceiver. The add on L80 GPS (Base on MTK MT3339) is designed for applications that use a GPS connected via the serial ports to the Raspberry Pi such as timing applications or general applications that require GPS information.The transceivers of the Lora/GPS HAT feature the LoRa™ long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
Frequency Band: 868 MHZ
Compatible with Raspberry Pi 2 Model B/Raspberry Pi 3.
LoRa™ Modem
FSK, GFSK, MSK, GMSK, LoRa™and OOK modulation
Preamble detection
Baud rate configurable
Built-in temperature sensor and low battery indicator
Excellent blocking immunity
Automatic RF Sense and CAD with ultra-fast AFC
